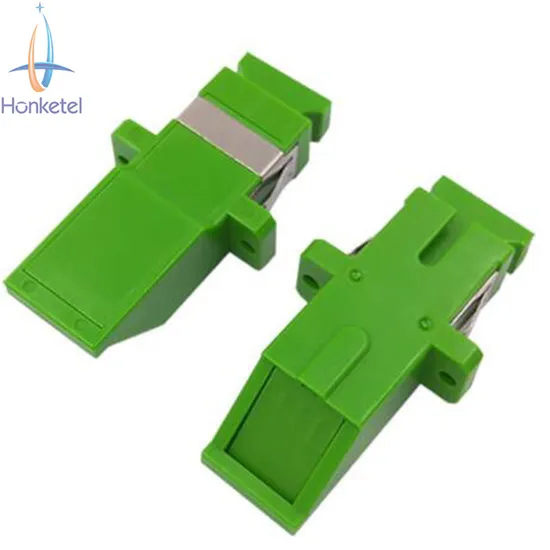

Fiber Optic Angled Adapter Inner Shutter Sc/APC Fiber Optic Adapter with Flange
Description
Basic Info.
| Model NO. | Fiber optic angled adapter |
| Number of Cores | 9/125μm Singlemode |
| Ferrule Endface | APC |
| Shape | Circular |
| Connector Type | Sc/APC/Upc |
| Brand | OEM |
| Insertion Loss | 100% <0.3dB |
| Return Loss | ≤ -45dB for Upc, ≤ 55dB for APC |
| Certification | CE RoHS FCC |
| Tensile Strength | >50n |
| Fastening Strength of Naked Fiber | >5n |
| Fiber and Coating Diameter | 125um&250um |
| Fiber Cable | Drop Cable |
| Temperature Range | -40~+85ºC |
| Operation Time | About 15s(Exclude Fiber Presetting) |
| Materials | ABS+ PC |
| Operating Wavelength | 1260~1650(Sm) |
| Total Length | 55mm |
| Fiber Type | Single Mode G657A1 |
| Ferrule | APC 8 Degree |
| Warranty Time | 1 Year |
| Transport Package | Plastic Bag and Box |
| Origin | China |
| HS Code | 8536700000 |
| Production Capacity | 60000 Per Day |
Product Description
Company Profile CertificationsPackaging & ShippingFAQ Fiber Optic Angled Adapter Inner Shutter SC/APC Fiber Optic Adapter with Flange
Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector, mechanica connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing.
The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged; Double V groove structure design, high stability and reliability of fiber connection; Core structure: adopt the normally closed flexible locking structure, excellent optical performance; Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable; Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance. Widely used in FTTH network Application
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
Related Products
Connector Parts
Technical Specification
| Type | Parameters |
| Insertion loss | ≤ 0.3dB (1310nm & 1550nm) |
| Return loss | ≤ -45dB |
| Bare fiber strength | >5N |
| Clad strength | >10N |
| Tension | >50N |
| Mechanical durability (500times) | IL ≤ 0.2dB & RL ≤ 5dB |
| Operating Temperature | 5 ºC to +70 ºC |
