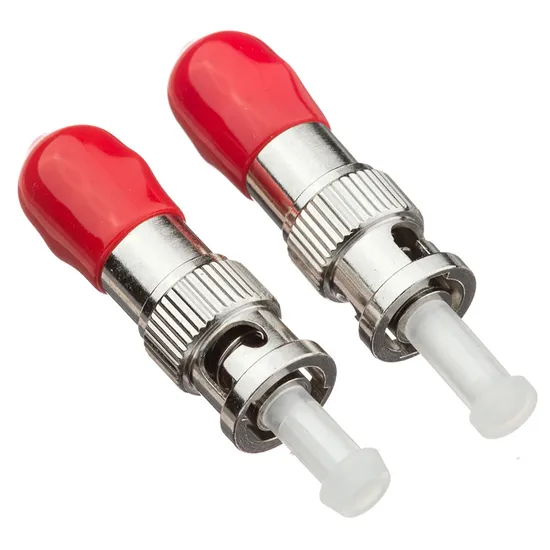

1dB 2dB 3dB 5dB 10dB 30dB, St Singlemode Fiber Optic Attenuator
1dB 2dB 3dB 5dB 10dB 30dB, St Singlemode Fiber Optic Attenuator Complied with or exceeds Standard . Telcorida GR-326-COR
Description
Basic Info.
| Model NO. | St Singlemode Fiber Optic Attenuator |
| Certification | CE, ISO, RoHS |
| Condition | New |
| Model Number | St |
| Insertion Loss | 0.2dB |
| Attenuation | 0 ~ 30 |
| Transport Package | Individual Box or According to Customer′s Request |
| Specification | RoHS, ISO9001 |
| Trademark | DYS or OEM |
| Origin | Guangdong, China (Mainland) |
| HS Code | 8536700000 |
| Production Capacity | 50000/Days |
Product Description
1dB 2dB 3dB 5dB 10dB 30dB, St Singlemode Fiber Optic Attenuator
Complied with or exceeds Standard
. Telcorida GR-326-CORE(ferrule end face quality compliant)
. Telecordia GR-910-CORE
. EC 60874-7, F01(JIS C5970) TIA/EIA-604-4A
. TIA/EIA-568B-B.3 Fiber Optic Cabling Components Standard
. EEE802.3z Standards for Fiber Optic Cabling
. RoHS Approved for European Market Requirements
Features
. Precise attenuation level(with 1dB,2dB,3dB... to 30dB, typical 5dB, 10dB 15dB)
. Inline design is easy to use (plugs between existing fiber jumper & equipment)
. Portable, Easy installation, Readily panel mountable
. High Quality Return loss 60db or Greater
. Custom designed specifications
. Dual wavelength (1310nm/1550nm)
. Attenuators marked with attenuation level
Specifications
High-end Optical male to female Fiber Optical Attenuators,Manufacturer,100% test Attenuators--SC,LC,FC,ST fiber optic attenuators--SC,LC,FC,ST optical fiber attenuators
| Characteristics | Unit | Conditions | Values |
| Attenuation | dB | UPC | 1 ~ 30 |
| APC | 1 ~ 20 | ||
| Return Loss | dB | UPC | ≥50 |
| APC | ≥60 | ||
| Operating Wavelength | nm | - | 1310 and 1550, 1240 - 1600 |
| Attenuation Accuracy | - | 1 ~ 10dB | ± 0.5dB |
| 11 ~ 30dB | ± 10% | ||
| Operating Temperature | °C | - | -40 ~ +75 |
| Storage Temperature | °C | - | -40 ~ +85 |
| Polarization Dependent Loss | dB | - | <0.2 |
| Relative Humidity | % | 75°C | 95 |
