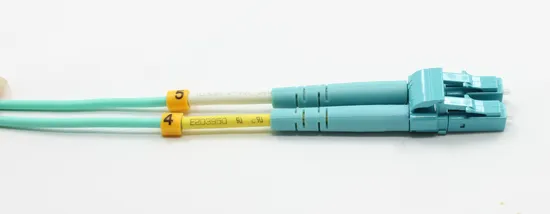

China 2/4/6/8/12/16/24 Core MPO/MTP LC/Sc/St/FC/Mu Connector FTTH Indoor Outdoor Armoured Drop LSZH PVC Fiber Optic Optical Patch Cord Pigtail Jumper Cable
With 21 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in Europe
Description
Basic Info.
| Model NO. | MPO/MTP LC/Sc/St/FC |
| Core | Multicore |
| Certification | RoHS, ISO9001 |
| Brand | ODM |
| Sheath Material | PVC.LSZH |
| Polishing | APC, PC |
| Cable Jacket Material | PVC, LSZH, Ofnr, Ofnp, PE |
| Boot Type | Round, Flat |
| Cable Diameter | 3.0mm/4.5m/6.0mm |
| Fanout Length | 0.5m/1m/2m |
| Cable Type | Round/Ribbon |
| Hybrid Connector | LC/FC/Sc/St |
| Channel | 2 /4/6/8/10/12/16/ 24 |
| Boot Color | Black |
| Housing Color | Aqua,Green, Beige,Yellow, Magenta |
| Cable Jacket Color | Blue,Green,Aqua,Red,Magenta,Beige |
| Adapter Type | MPO |
| IEC 61754-7 Compliant | Compact Design, up to 24 Fiber Ribbon |
| Transport Package | Single Pack |
| Specification | CE, RoSH, SGS |
| Trademark | KOC |
| Origin | Made in Shenzhen China |
| HS Code | 85447000 |
| Production Capacity | 500/Prt Month |
Product Description
With 21 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website kocchina.en.made-in-china.com. In case of need, please do not hesitate in contacting us.SPECIFICATIONS
| Single mode | Multimode | |
| Insertion Loss | Low Los ≤ 0.35dB | Low Los ≤ 0.35dB |
| Standard Loss ≤ 0.7dB | Standard Loss ≤ 0.5dB | |
| Return Loss | ≥ 55dB | ≥ 30dB |
| Durability | <0.3dB typical change, 200 matings | - |
| Operating Temperature | -40 to +85 ºC | -40 to +85 ºC |
MPO Optical Patch-Cord
KOC MPO solution is designed for high-density fber connections and high-speed data center cabling. We provide an economic highly reliable solution for your fber network systems.
APPLICATIONS:- CATV, and Multimedia- Gigabit Ethernet - Industrial and medical - Active device interface- Premise installations- Interconnection for O/E modules - Data processing networks- Telecommunication networks- Optical switch interframe connection- Asynchronous Transmission Mode (ATM)
FEATURES:- IEC 61754-7 Compliant- Compact design, up to 24 fiber ribbon - Polishing does not require diamond film- Precision molded MT ferrule- Telcordia GR-1435-CORE compliant- Low insertion loss and back reflection loss- High precision guide pins for exact alignment
Note: The price range is for MPO(female)-MPO(female) Multimode 24 core mini round cable 1m.
